Hammer Tone Spray Paint Epoxy Resin Powder Coating

Product name:
Hammer Tone Spray Paint Epoxy Resin Powder Coating

Introduction

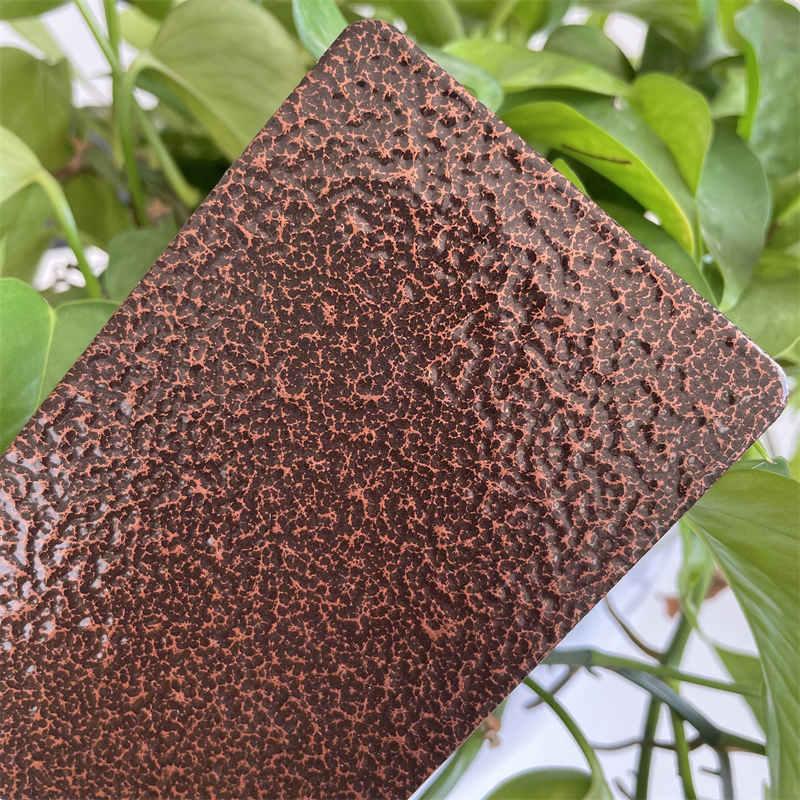

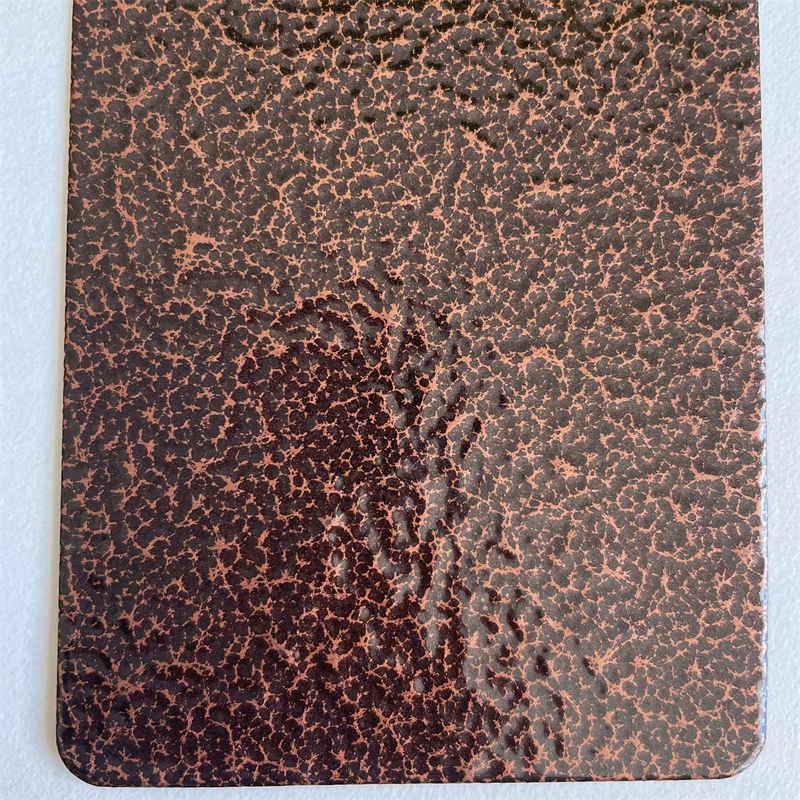

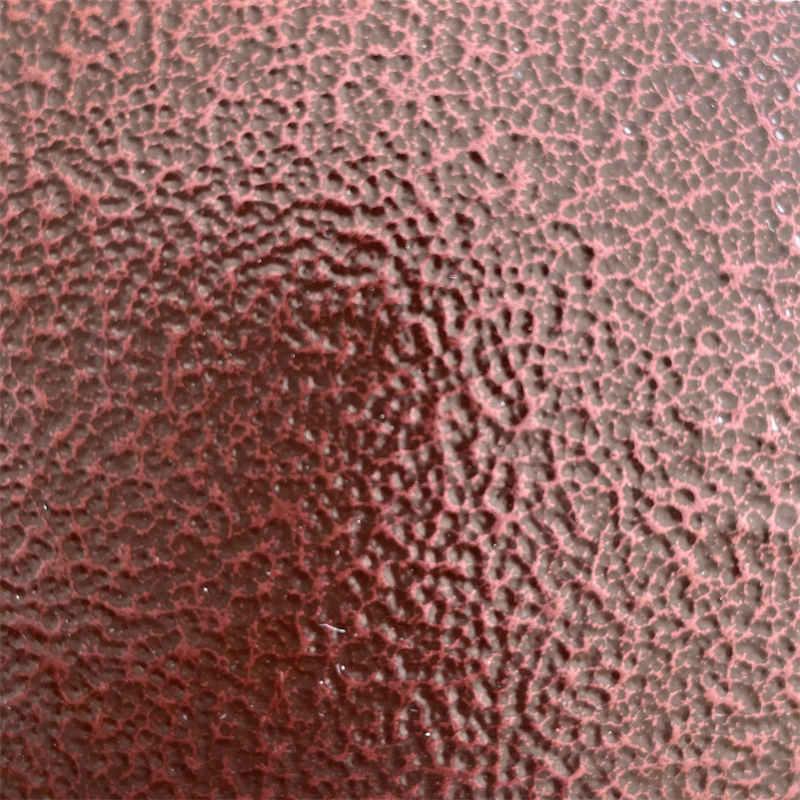

Hammer tone texture powder coating is an advanced method of applying a decorative and protective finish. This type of powder coating provide excellent toughness, durability, thickness and decorative effect.

Appearance
There are various appearance,from low gloss to high gloss.
Special Appearance:Texture,sand,metallic or pearl,mixed color,other special appearance upon request.

Physical properties
Special gravity:1.2-1.8(depending on the gloss and color)
Distribution of powder size:100% less than 100 micron (can be adjusted by the application requirement)
Flowability: 120-140
Volatility  <0.8%

Cure condition
200ºC(Object temperature)/10mins
180ºC(Object temperature)/15mins

Typical Performance Properties
All the tests as follows are carried out on 0.8mm steel panel with the film thickness of 50-70 microns.


Remark:
1)Gloss: Can be adjust from 0 to 95 according to the request of customer
2)Impact: Different gloss has different resistance capability of impact
               Smooth:50Kg.cm,  Low gloss:40Kg.cm

3)Mandrel Bend: The capability of bend is according to the gloss
4)The distribution of Particle: Use LS-POP(III)Laser particle sizer, it has no standard of tester method defined by the nation.
5)Salt spray and Aging resistance: Will test according to client's request.
6)Cup-process tests may vary slightly depending on the glossy and surface effect of the product, with matte, reluster, and sand-grained cup-processes generally being slightly smaller than high-gloss powders

Average Coverage
9-12 square meters per kilogram at the film thickness of 60 microns.(at 100% powder utilization)

TGIC&Primid
Both TGIC & Primid system are available, we can supply as your requested.

Remark

TDS is for reference only, for special texture powder coating, please contact us, thanks.
